TIROX1063
TIROX 12 Inch Wood Chipper
TIROX 1063 combines diesel power, 300 mm capacity.
SELECT YOUR MODEL
Contact for Custom Quote
- Engine power
- 129 HP
- Feed capacity
- 300 mm
- Feed control
- Intelligent Hydraulic
- Applications
- Forestry & Biomass
Performance, simplified
Industrial throughput without complicated operation.
- Maximum recommended diameter
- 12″
- Diesel horsepower
- 129
- Approx. tons per hour
- 5-6
- Discharge chute rotation
- 360°

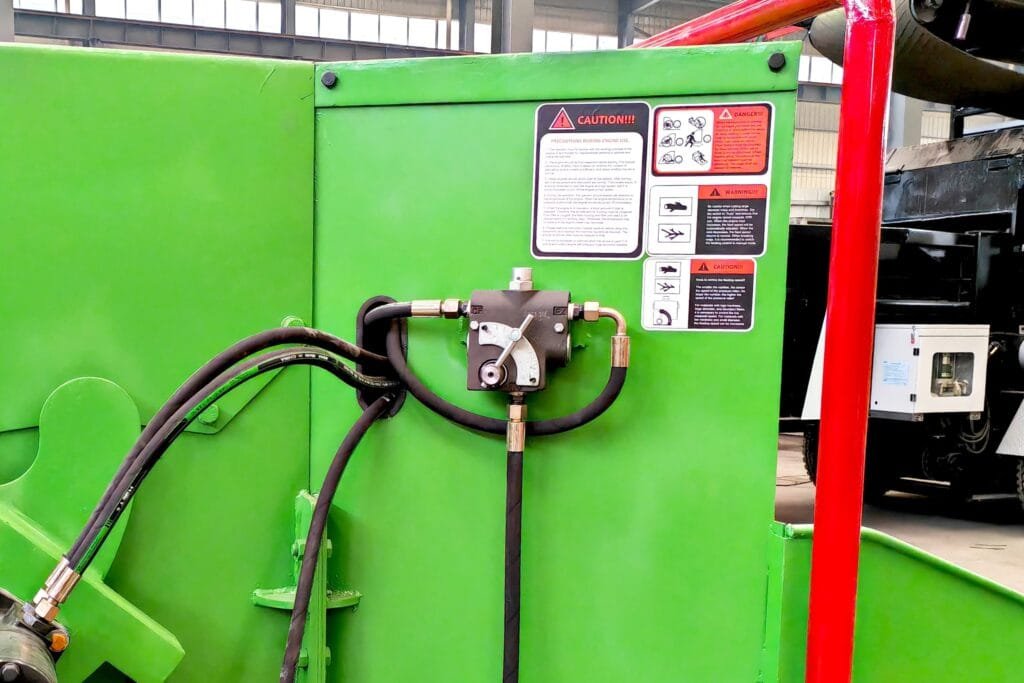

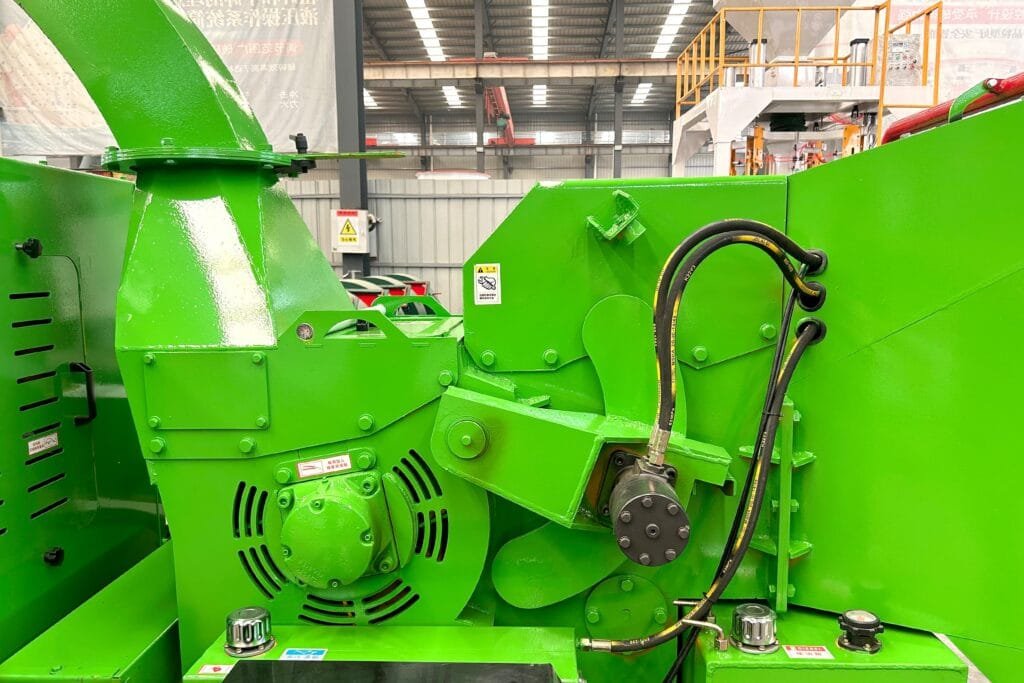

SMART FEEDING
Power only matters when material keeps moving.
The horizontal hydraulic roller grips irregular branches and feeds them steadily toward the drum. Engine-load monitoring can slow or pause feeding when RPM drops, helping reduce jams and keeping the operator focused on loading.
- Ten-speed manual control
- Automatic load-responsive mode
- Forward, stop and reverse functions
- Suitable for branches, crowns and green waste
THE MACHINE, IN DETAIL
Six systems. One productive workflow.
Industrial Diesel Power
The standard 129 HP four-cylinder diesel package provides the torque needed for continuous large-diameter processing. Alternative engine and emissions options can be discussed for different markets.

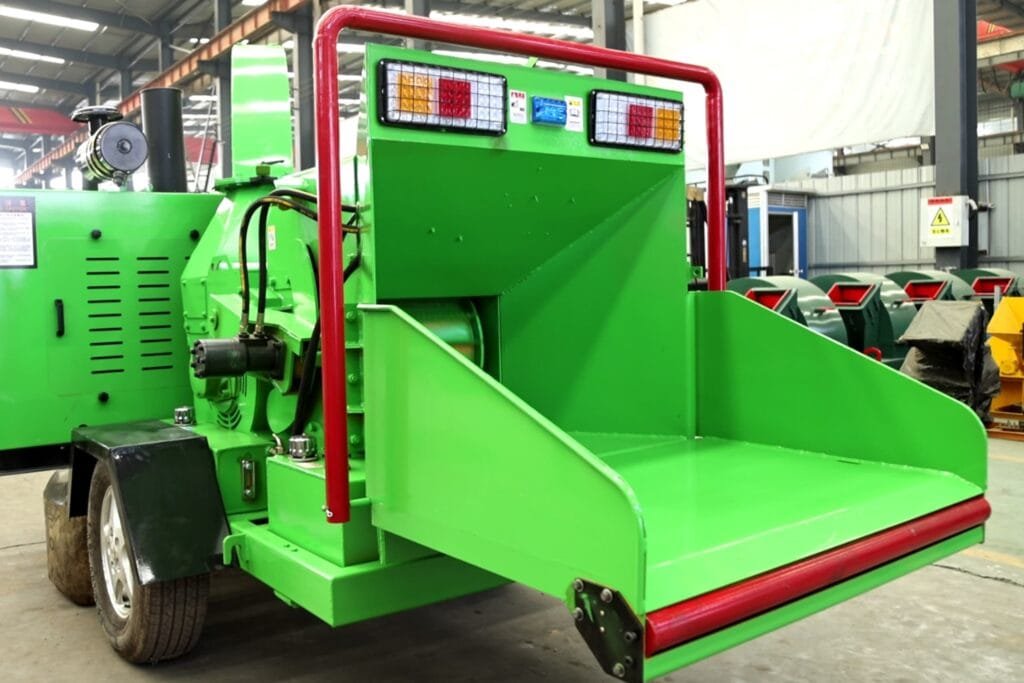

Operator-First Controls
Clear mechanical controls make forward, reverse and stop functions easy to understand. Operators can respond quickly to changing branch shapes and feed conditions.

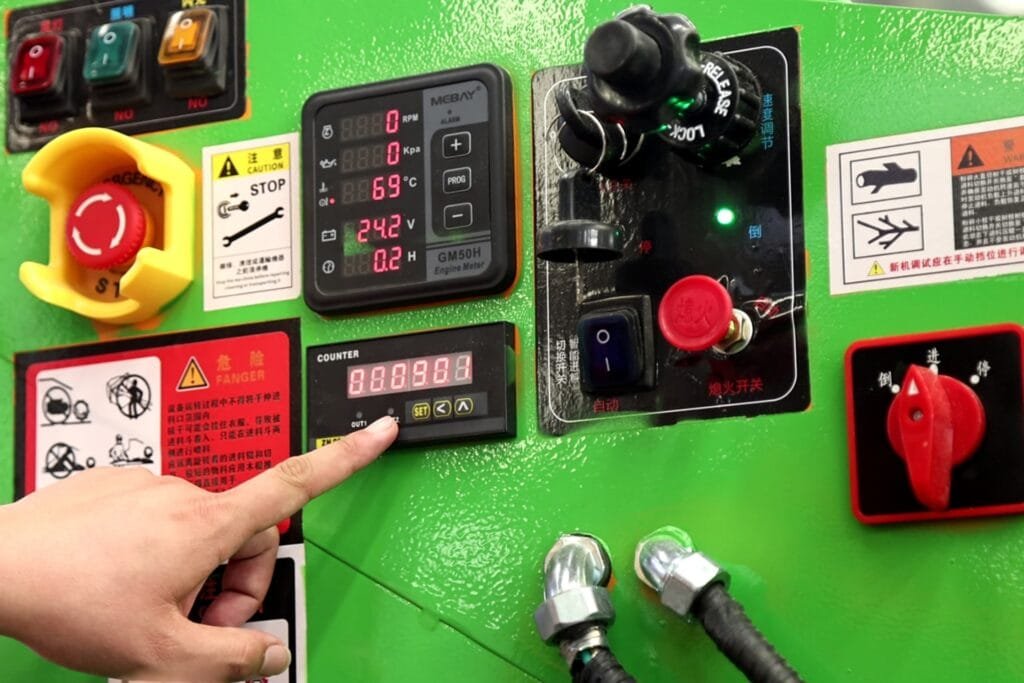

Machine Monitoring
Track operating hours, temperature and key machine conditions. Early visibility supports planned maintenance and helps reduce unexpected downtime.

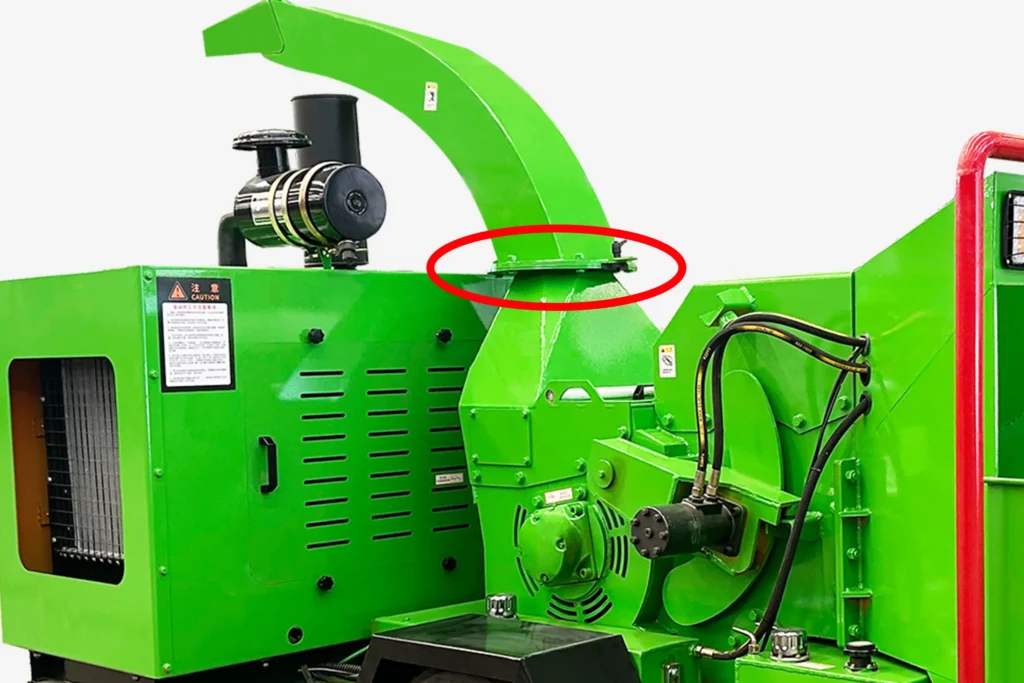

Place Chips Where Needed
The rotating discharge chute directs output into a truck, container or stockpile, reducing cleanup and machine repositioning on busy sites.
CUTTING SYSTEM
A drum designed for consistent flow.
A Ø630 × 600 mm drum running at approximately 2200 rpm uses six moving blades and one fixed blade. The layout is engineered to accept larger material while producing manageable, transportable chips.
Chip characteristics can be adjusted through blade condition, anvil clearance, feed rate and material properties. For biomass fuel, mulch or volume reduction, TIROX can recommend an operating setup around the desired result.
APPLICATIONS
One platform for different crews.
Municipal Green Waste
Process pruning waste and storm debris at collection points or directly at maintenance sites.
Tree Care & Forestry
Reduce branches and small trees for transport, site clearing and volume management.
Biomass Production
Create consistent feedstock for biomass systems, composting operations and downstream processing.
CHOOSE YOUR PLATFORM
Towed for mobility. Tracked for access.
Standard towed chassis
For contractors, municipal fleets and road-accessible sites requiring straightforward transport.
Optional crawler chassis
For plantations, soft ground, slopes and forestry operations where traction matters more than road speed.
Additional options
Road-ready package, feeding conveyor, engine selection and market-specific emissions configuration.
SPECIFICATIONS
The numbers behind the work.
| Engine | Weichai 129 HP diesel, 4 cylinders |
| Starting system | 24 V electric start |
| Fuel tank | Approx. 80-100 L |
| Maximum diameter | 12 inches / 300 mm |
| Approximate capacity | 5-6 tons/hour |
| Feed opening | Approx. 470 × 380 mm |
| Cutting drum | Ø630 × 600 mm; approx. 2200 rpm |
| Blade arrangement | 6 moving + 1 fixed blade |
| Hydraulic oil tank | 60 L |
| Lubrication | Semi-automatic centralized system |
Final specifications depend on selected engine, chassis, emissions package and regional requirements.
OWNERSHIP SUPPORT
Support designed around uptime.
TIROX provides configuration guidance, pre-shipment testing, operating documentation, spare-parts planning and remote technical support. Dealer and technician training can be arranged for international partners.
- 1 year / 2000 hour standard warranty
- Direct wear- and spare-parts supply
- Multilingual remote support
- Dealer service training
FAQ
What real-world output can I expect?
Material species, moisture, branch shape and crew workflow all affect output. The typical reference range is approximately 5-6 tons per hour.
Can it process pallets with nails?
No. Metal can damage the cutting system. A shredder or horizontal grinder is recommended for contaminated demolition or pallet material.
Can I select a different engine?
Yes. Engine brand, emissions standard and power package can be discussed according to local regulations and service access.
How is it delivered?
The shipping plan depends on chassis and accessories. TIROX can provide loading dimensions and logistics guidance before order confirmation.
BUILD YOUR 1063
Tell us what goes in.
We'll configure what comes next.
Share material diameter, target output, terrain, destination country and emissions requirements.
