TIROX1585
TIROX 16 Inch Wood Chipper
TIROX 1585 combines heavy-duty diesel power with 430 mm capacity.
SELECT YOUR MODEL
Contact for Custom Quote
- Engine power
- 244 HP
- Feed capacity
- 430 mm
- Feed control
- Intelligent Hydraulic
- Applications
- Forestry & Biomass
Material Applications
Heavy-Duty Chipping for Large Timber and Forestry Residue
Large Logs & Roundwood
Process clean logs and roundwood up to 430 mm into controlled chips for biomass fuel, mulch, or further processing.
Forestry Residue
Process treetops, limbs and clean forestry residue at remote logging and land-management sites.
Branches & Green Waste
Reduce branches, pruning residue, leaves, and mixed garden waste for composting or biomass production.
Biomass Feedstock
Produce consistent chips from clean wood feedstock for biomass fuel, landscaping and downstream processing.
/ Specifications
Full SPECS.
1 Performance
- Engine
- Weichai 244 HP diesel, 6 cylinders
- Starting system
- 24 V electric start
2 Dimensions
- Maximum diameter
- 16 inches / 430 mm
- Feed opening
- Approx. 750 × 430 mm
- Cutting drum
- Ø1015 × 730 mm; approx. 2200 rpm
3 Capacity
- Fuel tank
- 125 L
- Approximate capacity
- 7-10 tons/hour
- Hydraulic oil tank
- 60 L
4 Cutting & Mobility
- Blade arrangement
- 9 moving + 1 fixed blade
- Lubrication
- Automatic lubrication
- Feeding system
- Horizontal hydraulic forced feeding with conveyor
- Standard mobility
- 4-wheel tandem-axle tow chassis
- Optional mobility
- Crawler or road transport configuration, subject to regional requirements
Final specifications depend on selected engine, chassis, emissions package and regional requirements.
/ Features
KEY FEATURES.
Top-Tier Diesel Engine
Choose from quality Chinese engines or trusted brands like Cummins and Perkins, making parts replacement and maintenance hassle-free.
User-Friendly Operation
Intuitive control levers manage forward, reverse, and stop functions easily—protecting the blades and engine during blockages.

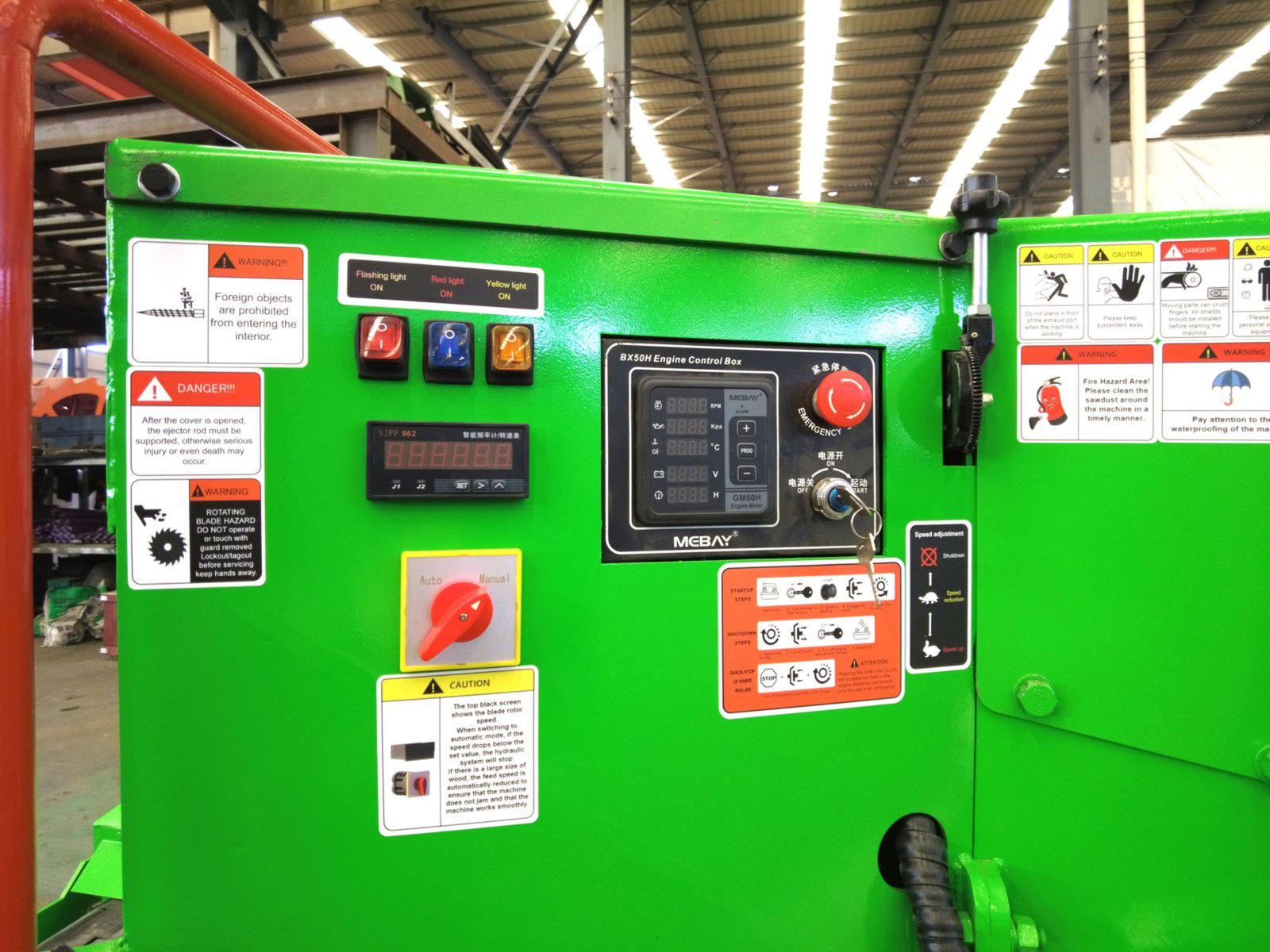

Smart Control Panel
Monitor oil level, water temperature, and run time at a glance, helping you catch issues early and reduce maintenance.

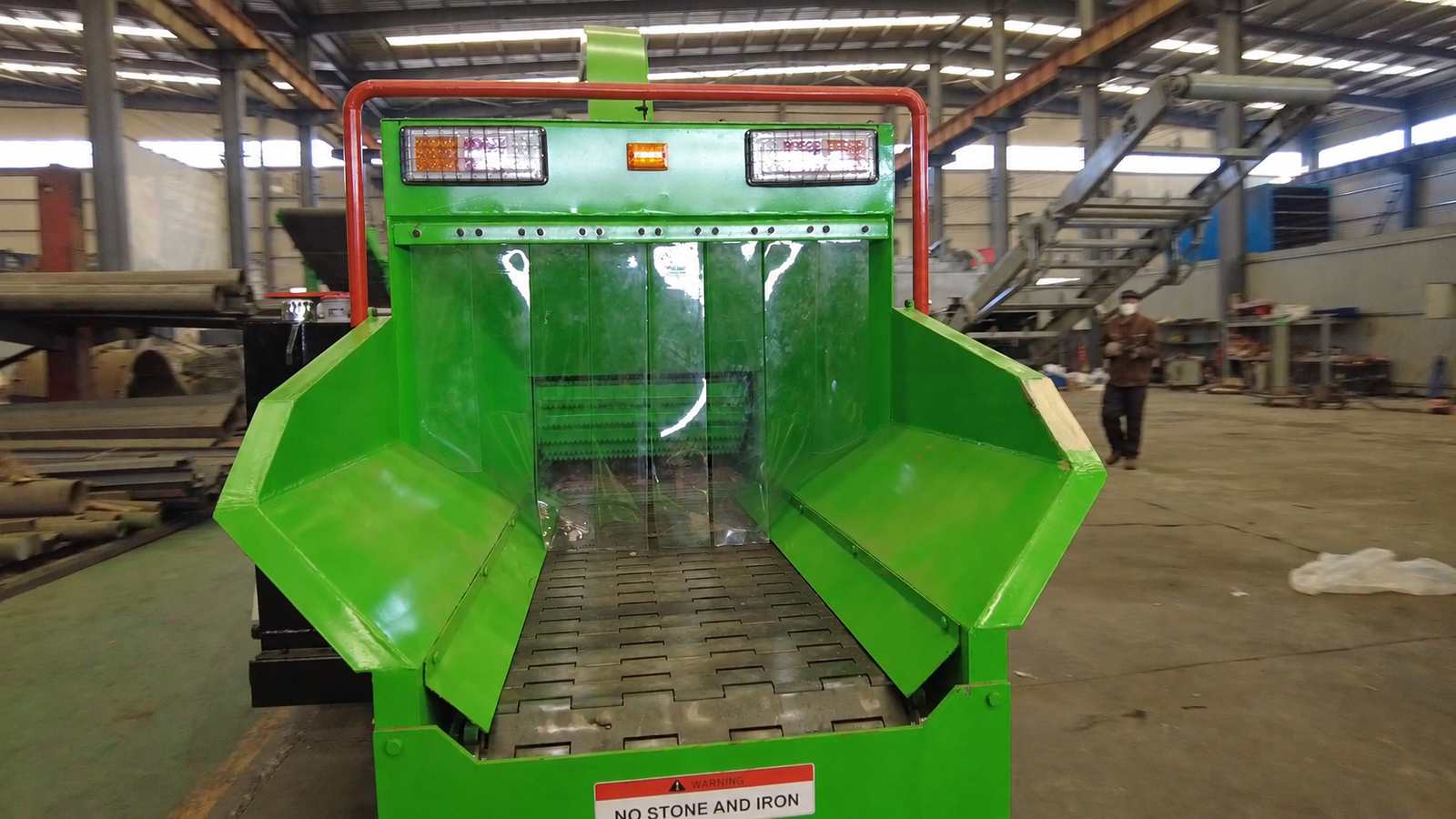

Hydraulic Forced Feeding System

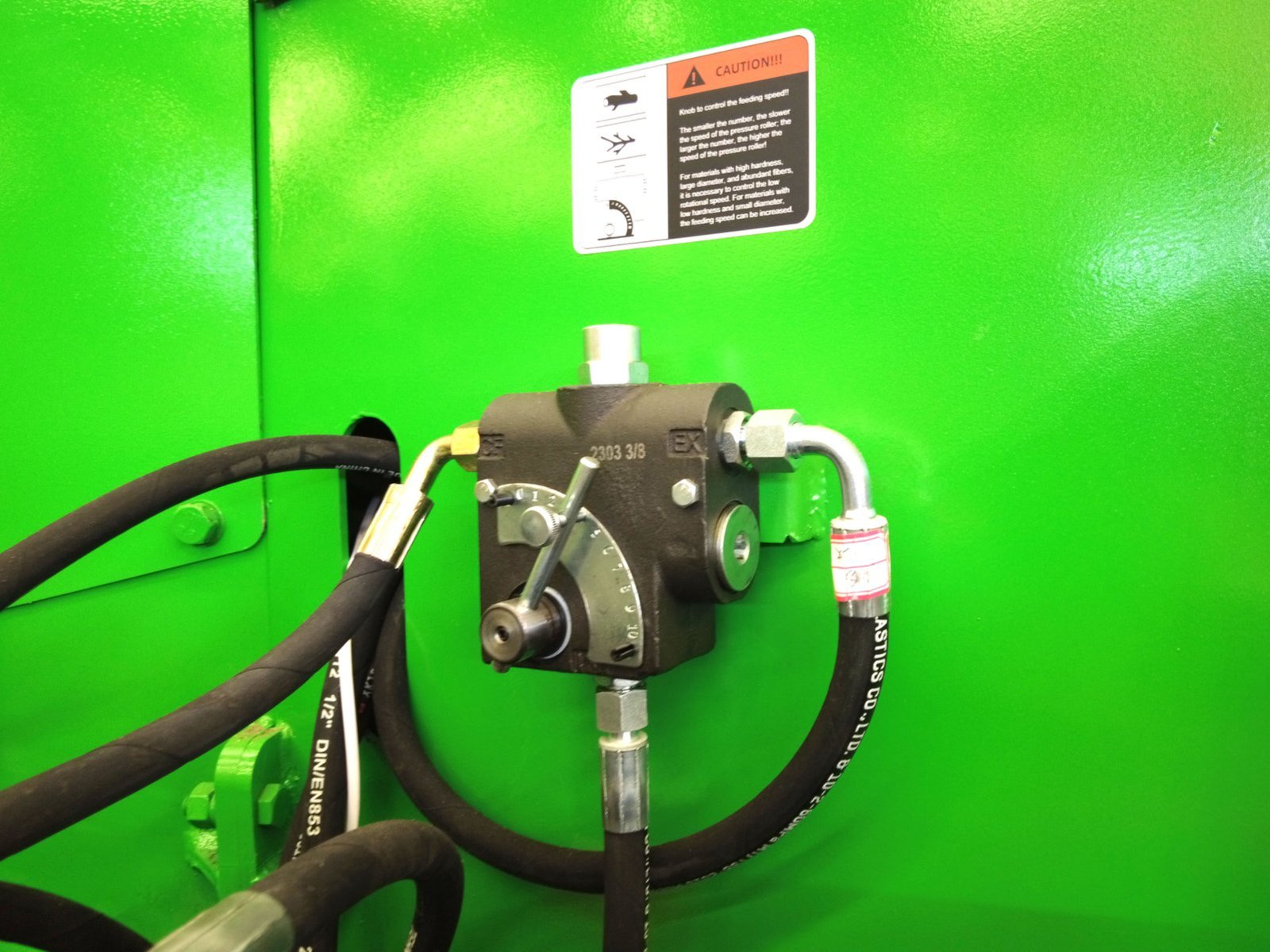

Easily adjust feeding speed for different material sizes with our hydraulic system, ensuring better performance and higher output.
Intelligent Feeding System
Real-time load monitoring automatically adjusts feed speed or stops feeding, preventing blockages and ensuring smooth operation.
Intelligent Chain Plate
Q235 carbon steel chain plate with smart hydraulic control for forward, reverse, and stop. Strong load and conveying capacity.
/ Recommended Equipment
Equipment for every stage of your project.
Wood Grinding
Tracked Horizontal Grinders
Material Handling
Industrial Mini Excavator
Land Clearing
Tracked Forestry Mulchers
Wood Processing
TIROX Portable Sawmills
/ Equipment Gallery
TIROX Gallery.
/ Ownership Support
Support designed around uptime.
TIROX provides configuration guidance, pre-shipment testing, operating documentation, spare-parts planning and remote technical support. Dealer and technician training can be arranged for international partners.
- 1 year / 2000 hour standard warranty
- Direct wear- and spare-parts supply
- Multilingual remote support
- Dealer service training
/ FAQ
Frequently asked questions.
What output can I expect?
The TIROX 1585 delivers approximately 7–10 tons per hour, depending on wood species, moisture, material shape and feeding efficiency.
Can it process pallets with nails?
No. Metal can damage the blades and cutting system. For contaminated pallets or demolition wood, choose a shredder or horizontal grinder.
Can I select a different engine?
The reference configuration uses a 244 HP six-cylinder Weichai diesel engine. Cummins and other engine or emissions packages can be configured for the destination market.
What mobility options are available?
The standard model has a two-wheel towable chassis. Crawler, road-ready and feeding-conveyor configurations are also available.
/ Build Your 1585
Tell us what goes in.
We'll configure what comes next.
Share material diameter, target output, terrain, destination country and emissions requirements.
