TIROX GEN 3
TIROX Revolution Grinder (Gen 3)
The TIROX Revolution Grinder (Gen 3) combines heavy-duty performance with an innovative structure designed to simplify maintenance and maximize uptime. Available in TRHG 5000/6400/8600 models, it offers capacities of 10–50 t/h, handles material up to 800 mm in diameter, and features 300–1,000 HP Weichai, Cummins or Caterpillar diesel engines, depending on configuration. Built in China with local service support, it helps demanding wood-processing operations maintain productivity and reduce downtime.
SELECT YOUR MODEL
Contact for Custom Quote
- Engine range
- 350–900 HP
- Clean-log limit · 8600
- 800 mm
- Feed control
- PLC Hydraulic Feed
- Applications
- Wood Waste & Biomass
/ Material Applications
One platform. Two purpose-built rotors.
Select the rotor around the incoming material, then match the screen to the desired output. Blade and hammer rotors serve different jobs and should not be treated as interchangeable in operation.

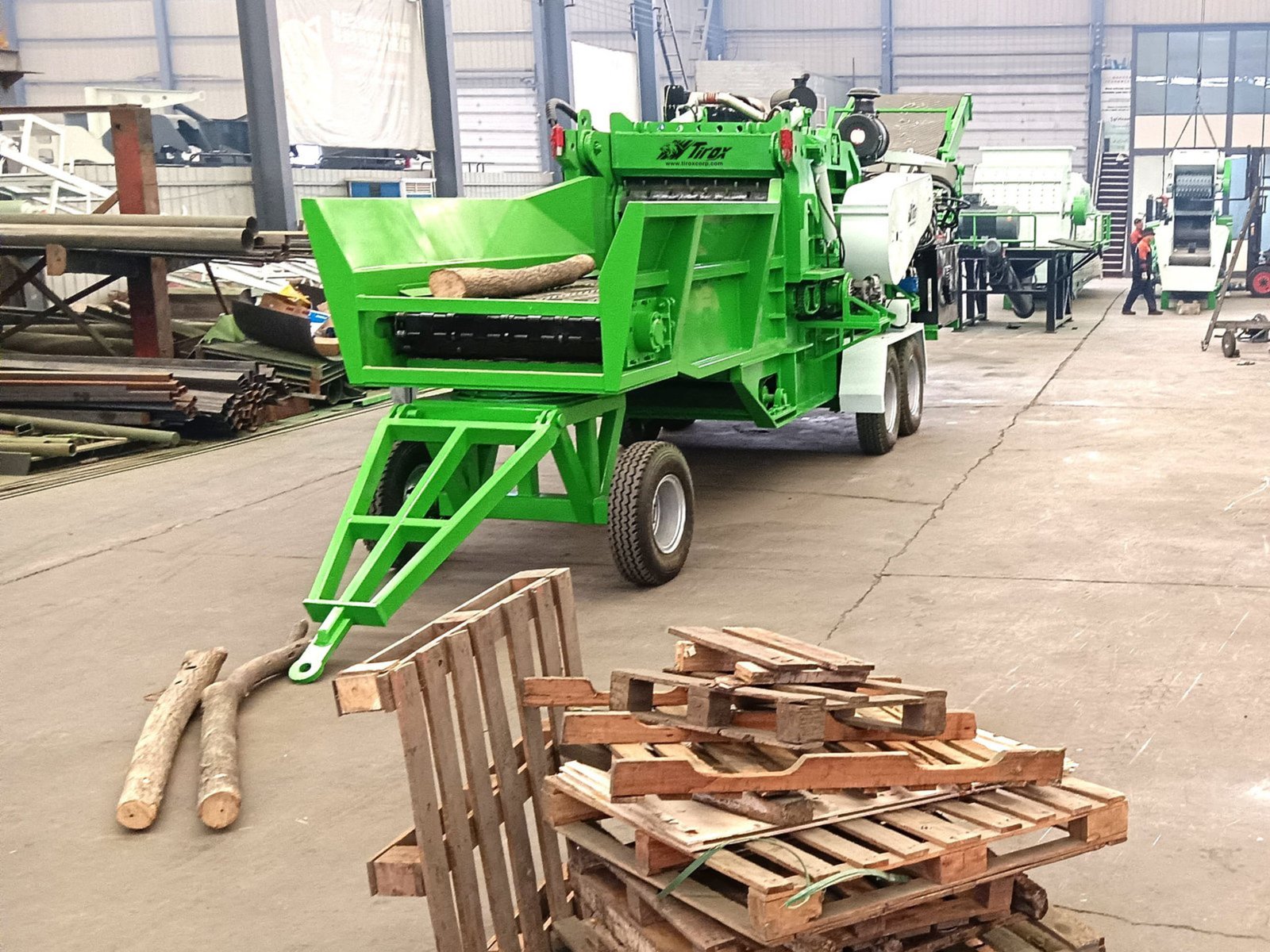

Nailed Pallets
Configure a hammer rotor for pallets containing nails, screws and other common metal fasteners.
Whole Trees & Forestry Residue
Process whole-tree material, branches and bulky forestry residue after model and feed review.
Construction & Reclaimed Timber
Handle demolition timber, old furniture and reclaimed structural wood with a contamination-aware configuration.
Mixed Wood Waste
Integrate Gen 2 into sustained recycling and biomass-preprocessing lines with the right feeding and discharge system.
Material contamination, diameter, moisture and output specification must be reviewed before configuration. Hammer rotors are not intended for sustained heavy grinding of large clean logs.
/ Specifications
Full Specs.
1Model performance
- Gen 3 5000
- 350–400 HP · approx. 10–15 t/h
- Gen 3 6400
- 480–550 HP · approx. 20–25 t/h
- Gen 3 8600
- 550–900 HP · approx. 30–40 t/h
2Clean-log limits · blade rotor
- Gen 3 5000
- Up to 400 mm clean-log diameter
- Gen 3 6400
- Up to 600 mm clean-log diameter
- Gen 3 8600
- Up to 800 mm clean-log diameter
3Rotor & output selection
- Blade rotor
- Clean logs and metal-free timber · chip-like output
- Hammer rotor
- Nailed pallets and reclaimed wood · strip-like output
- Output range
- Typically 2–10 cm mixed material, dependent on screen, feedstock and rotor
- Screen
- Select opening to match the end-use requirement
4Industrial systems
- Drive & feeding
- Full-hydraulic system with PLC-controlled feed
- Rotor service
- Quick-change rotor design
- Lubrication
- Automatic lubrication as standard
- Key components
- Siemens PLC controls and FAG bearings per Gen 3 series specification
Throughput and particle size are indicative, not guaranteed for every material. Final performance depends on feedstock, moisture, contamination, rotor, screen, engine and operating conditions. Confirm the build sheet before ordering.
/ Features
Key Features.

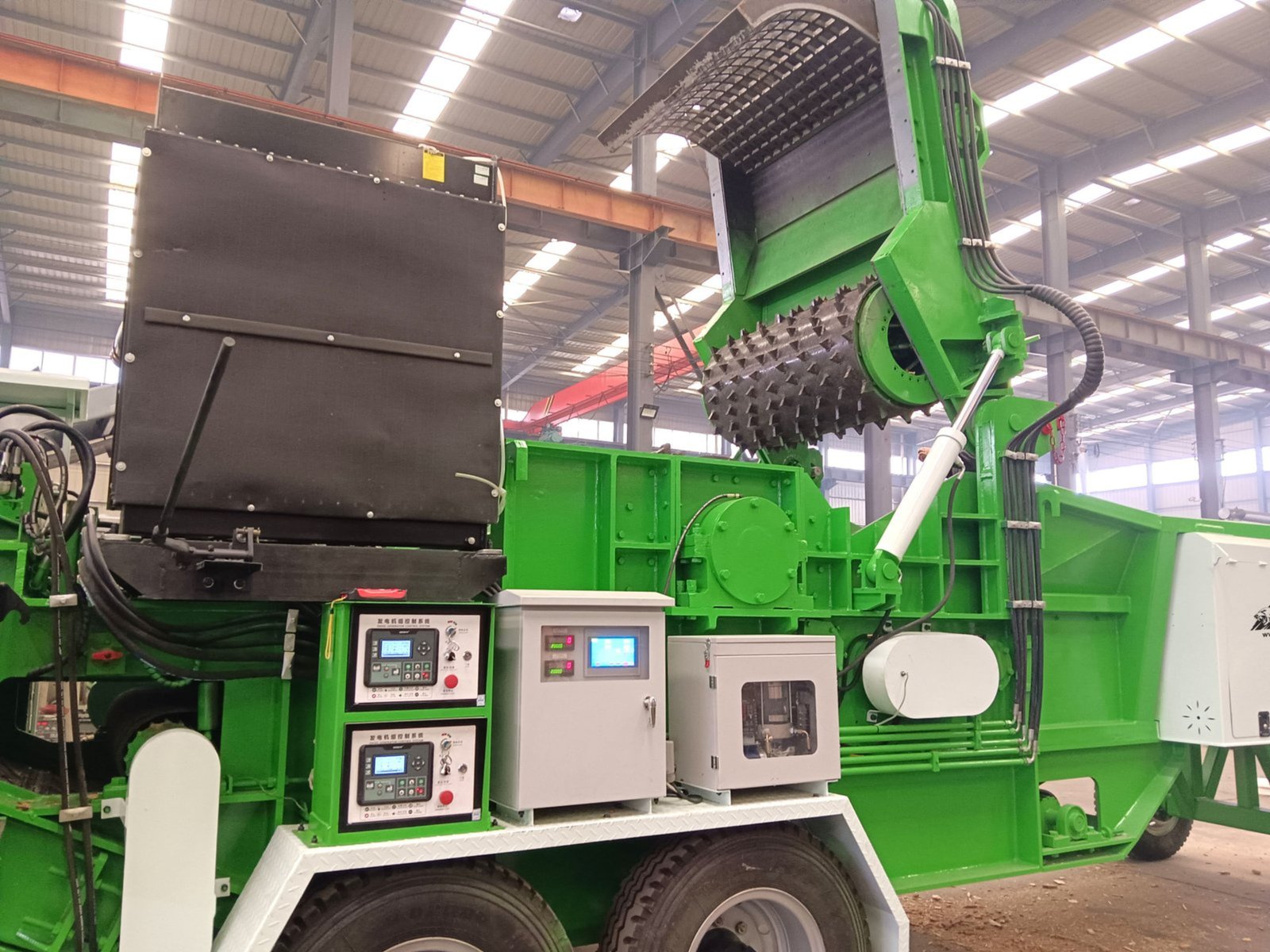

Rear-opening canopy
The hydraulic rear-opening canopy provides direct access for safe, rapid maintenance, turning downtime into uptime

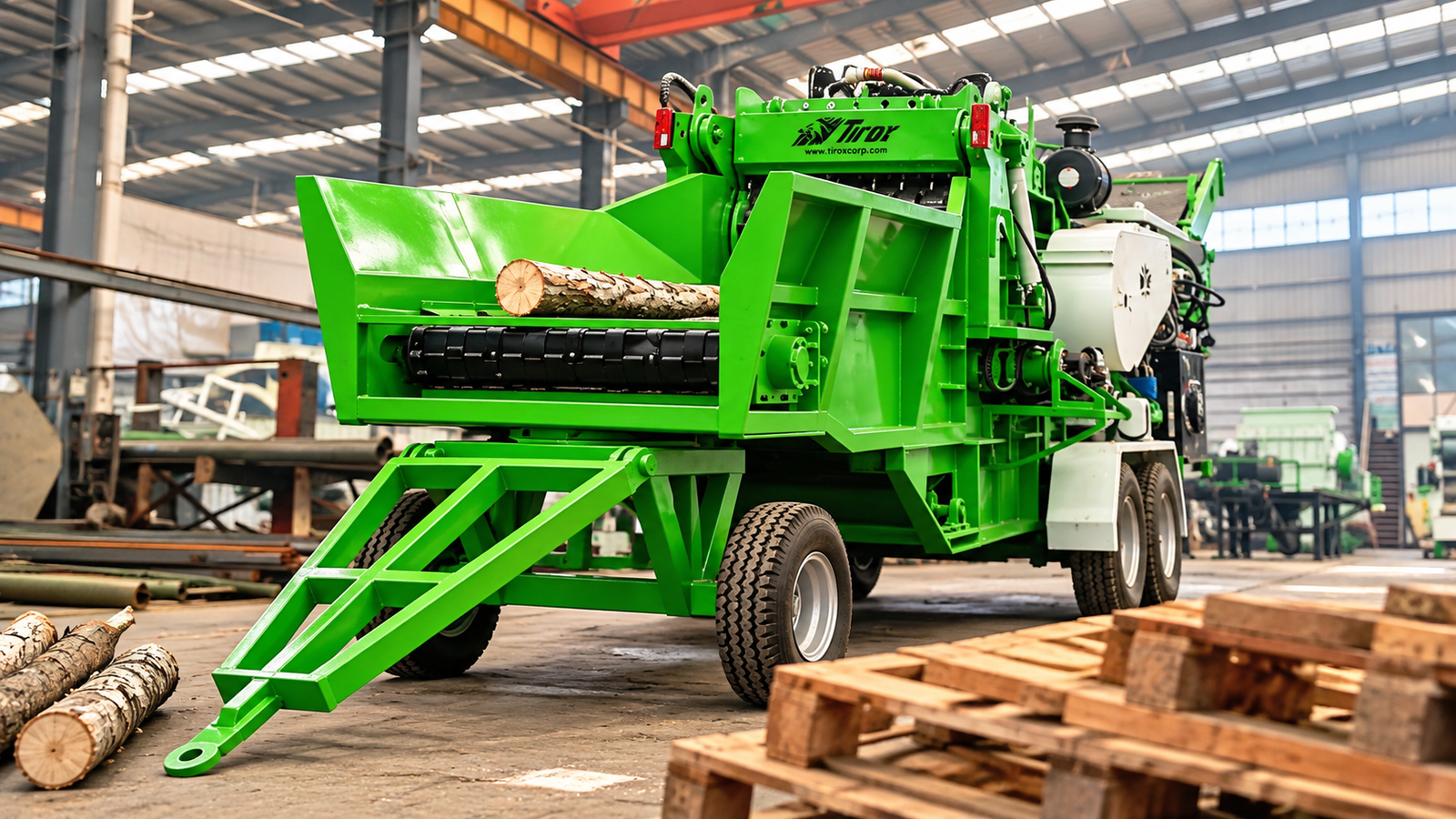

Versatile Material Processing
Process logs, branches, pallets and mixed wood waste with a rotor configuration matched to your material

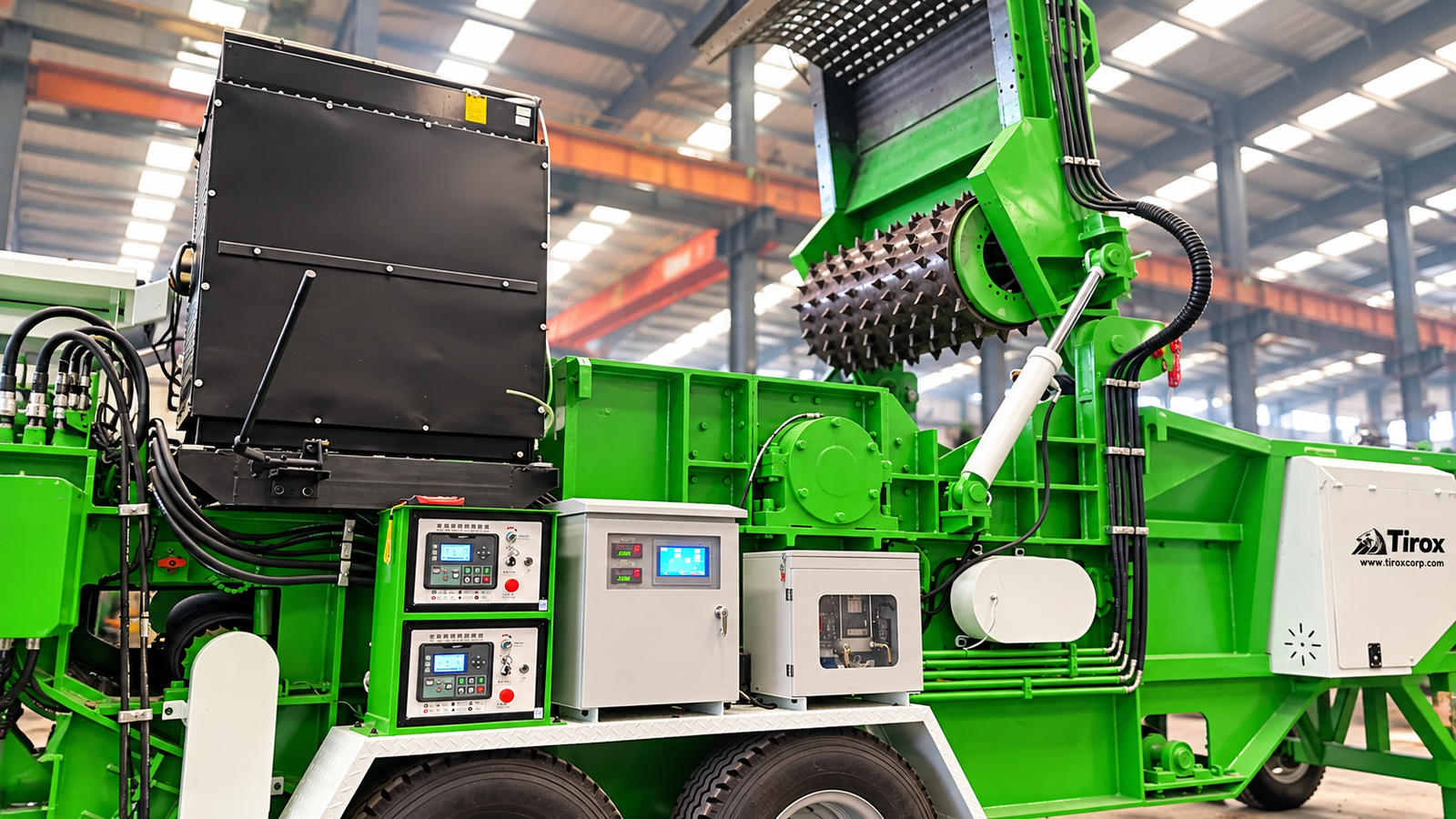

Siemens PLC Control
Precisely controls feeding speed and start-stop functions, supporting stable operation with fewer manual adjustments

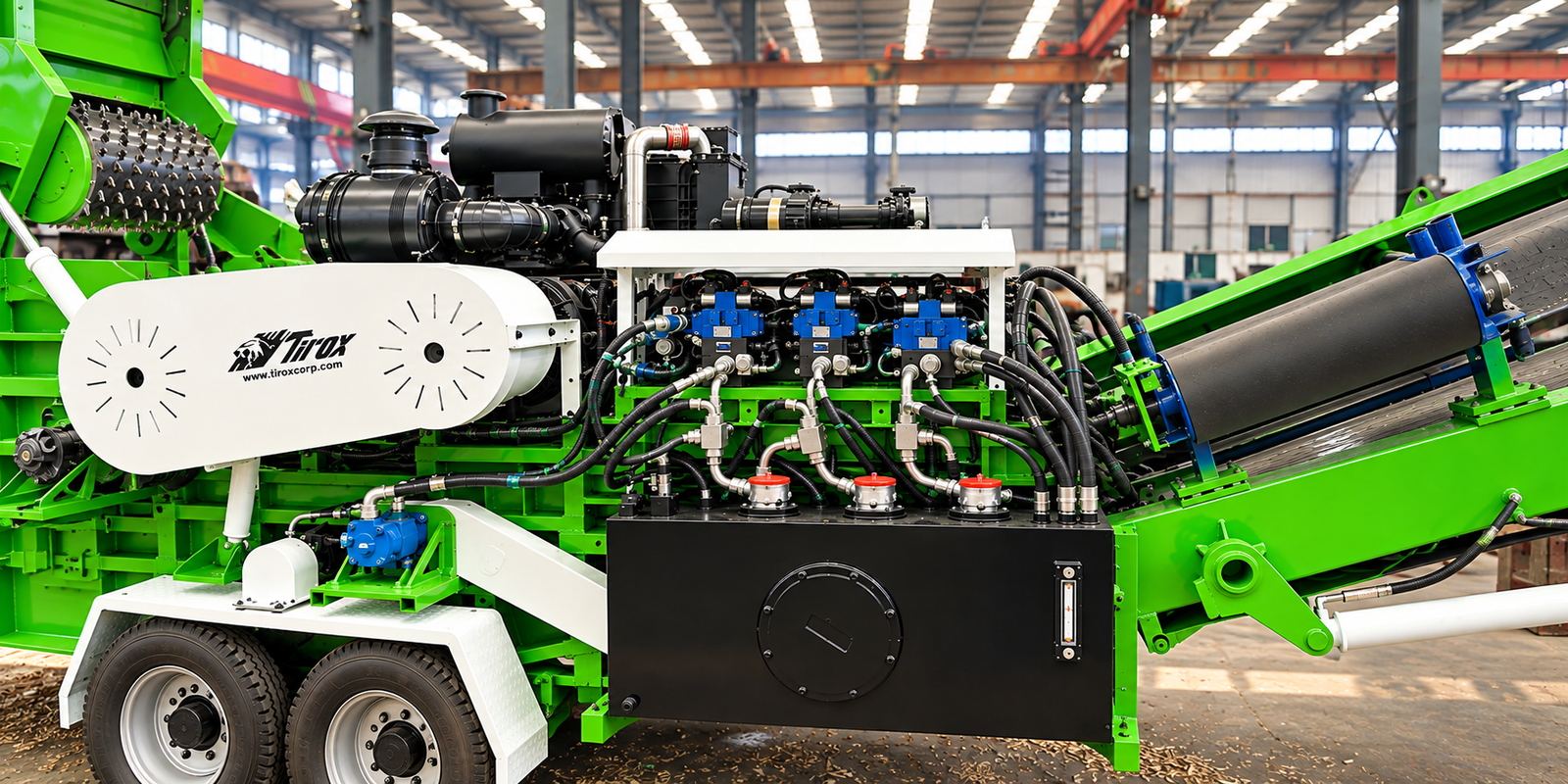

Full-Hydraulic Architecture
The optimized hydraulic system supports feed, drive and service functions across heavy industrial duty cycles.
Interchangeable Rotors
Choose a knife rotor for clean logs and forestry wood, or a hammer rotor for nail-containing pallets and construction wood waste
Compact, Lightweight Design
An optimized layout reduces unnecessary bulk, making equipment placement and maintenance easier
Images illustrate TIROX grinder equipment; exact layout and components depend on model and configuration.
/ Gen 3 Lineup
Choose the right scale for your material.
Revolution Grinder · Gen 3
5000
- Diesel power
- 350–400 HP
- Indicative output
- 10–15 t/h
- Clean-log limit*
- 400 mm
Revolution Grinder · Gen 3
6400
- Diesel power
- 480–550 HP
- Indicative output
- 20–25 t/h
- Clean-log limit*
- 600 mm
Revolution Grinder · Gen 3
8600
- Diesel power
- 550–900 HP
- Indicative output
- 30–40 t/h
- Clean-log limit*
- 800 mm
* Clean-log diameter limits apply to the blade-rotor configuration. Hammer-rotor feedstock limits differ. Output varies with material, screen and operating conditions; confirm specifications in the final proposal.
/ Equipment Gallery
TIROX Gallery.
/ Ownership Support
Support designed around uptime.
TIROX can help match the Gen 3 model, rotor, screen, engine and mobility package to your material and site. The final build sheet should state the operating limits and service requirements.
- ✓Pre-shipment testing
- ✓Rotor and screen selection
- ✓Spare-parts planning
- ✓Operating and maintenance guidance
/ FAQ
Frequently asked questions.
Which rotor should I choose?+
Use a blade rotor for clean, metal-free logs and timber. Use a hammer rotor for nailed pallets and reclaimed wood. The feedstock review determines the correct build.
Can the hammer rotor grind large clean logs continuously?+
No. The hammer rotor is intended for waste-wood duty and should not be used for sustained heavy grinding of oversized clean logs; choose the blade configuration for clean timber.
What throughput should I plan for?+
The documented ranges are approximately 10–15 t/h for 5000, 20–25 t/h for 6400 and 30–40 t/h for 8600 under suitable conditions. Actual output depends on material, moisture, screen and operation.
Is Gen 3 suited to continuous industrial production?+
The series is designed for industrial production with full hydraulics, PLC-controlled feeding and automatic lubrication. Confirm the duty cycle, maintenance plan and feed system for your site.
/ Configure Your Gen 3
Tell us what goes in.
We'll configure what comes next.
Share your feedstock, maximum piece size, target output, site layout and destination country so we can match the model, rotor and screen.
