TIROX GEN 2
TIROX Heavy Duty Grinder (Gen 2)
The TIROX Heavy Duty Grinder (Gen 2) delivers 10–50 t/h and handles material up to 800 mm in diameter, depending on configuration. Available in ZSHG 1000/1400/1600/1800 models with 350–861 HP Weichai, Cummins or Caterpillar engines, its fully hydraulic system, reinforced components and automatic central lubrication support continuous heavy-duty operation.
SELECT YOUR MODEL
Contact for Custom Quote
- Engine range
- 350–861 HP
- Largest infeed opening
- 1800×1000 mm
- Feed control
- PLC Hydraulic Feed
- Applications
- Pallets & Mixed Wood
/ Material Applications
Built for heavy-duty feedstock.
The Gen 2 platform is built around a reinforced frame, hydraulic functions and PLC-managed feeding. Select the rotor and screen for the incoming material, contamination level and required output.
Nailed Pallets
Configure a hammer rotor for pallets containing nails, screws and other common metal fasteners.
Whole Trees & Forestry Residue
Process whole-tree material, branches and bulky forestry residue after model and feed review.
Construction & Reclaimed Timber
Handle demolition timber, old furniture and reclaimed structural wood with a contamination-aware configuration.
Mixed Wood Waste
Integrate Gen 2 into sustained recycling and biomass-preprocessing lines with the right feeding and discharge system.
Rotor selection must match the feedstock. Confirm sustained clean-log duty separately; a hammer-rotor configuration should not be overloaded continuously with large clean logs.
/ Specifications
Full Specs.
1Model performance
- Gen 2 1000
- 350 HP · approx. 10–20 t/h
- Gen 2 1400
- 482 HP · approx. 15–30 t/h
- Gen 2 1600
- 667 HP · approx. 25–40 t/h
- Gen 2 1800
- 861 HP · approx. 30–45 t/h
2Published infeed openings
- Gen 2 1000
- 1000 × 1000 mm
- Gen 2 1400
- 1400 × 1000 mm
- Gen 2 1600
- 1600 × 1000 mm
- Gen 2 1800
- 1800 × 1000 mm
3Feedstock & output selection
- Hammer rotor
- Nailed pallets, demolition timber and mixed reclaimed wood
- Forestry feedstock
- Whole trees, branches and bulky residue after configuration review
- Screen selection
- Configure the screen around the required downstream output
- Duty review
- Confirm sustained clean-log processing separately
4Heavy-duty systems
- Structure
- Reinforced and thickened heavy-duty frame
- Hydraulic functions
- Upgraded hydraulic system for feed and service functions
- Feed control
- PLC-managed feed start, stop and speed
- Lubrication
- Automatic central lubrication as standard
Published throughput figures are indicative reference values. Actual capacity and permissible feed size depend on the model, rotor, screen, wood species, moisture, contamination and operating conditions. Confirm the final build sheet before ordering.
/ Features
Key Features.
Reinforced Heavy-Duty Frame
A strengthened, thickened machine structure is designed for demanding material and sustained production schedules.

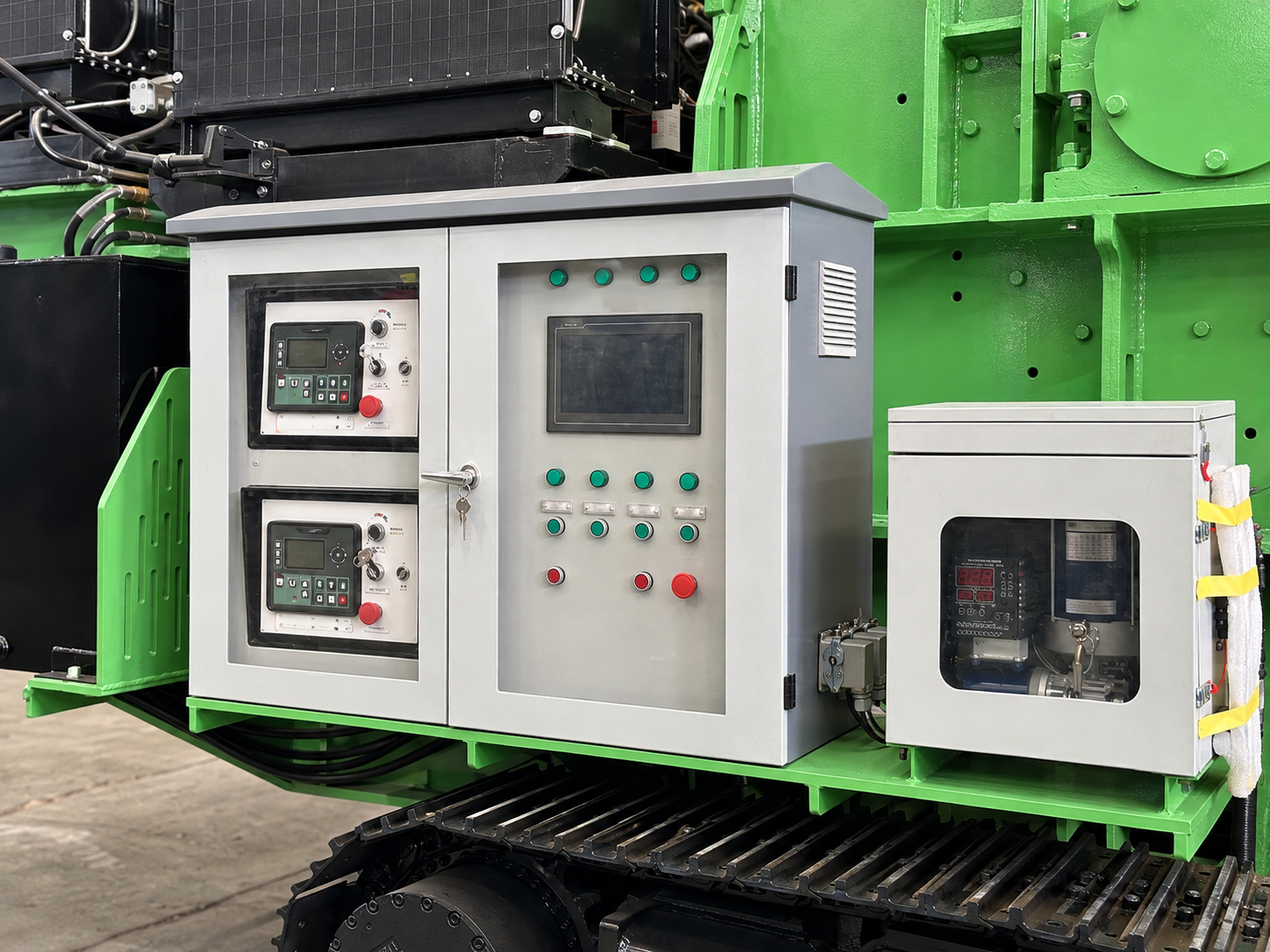

PLC-Managed Feed Control
PLC control manages feed start, stop and speed to support stable loading and consistent operation.

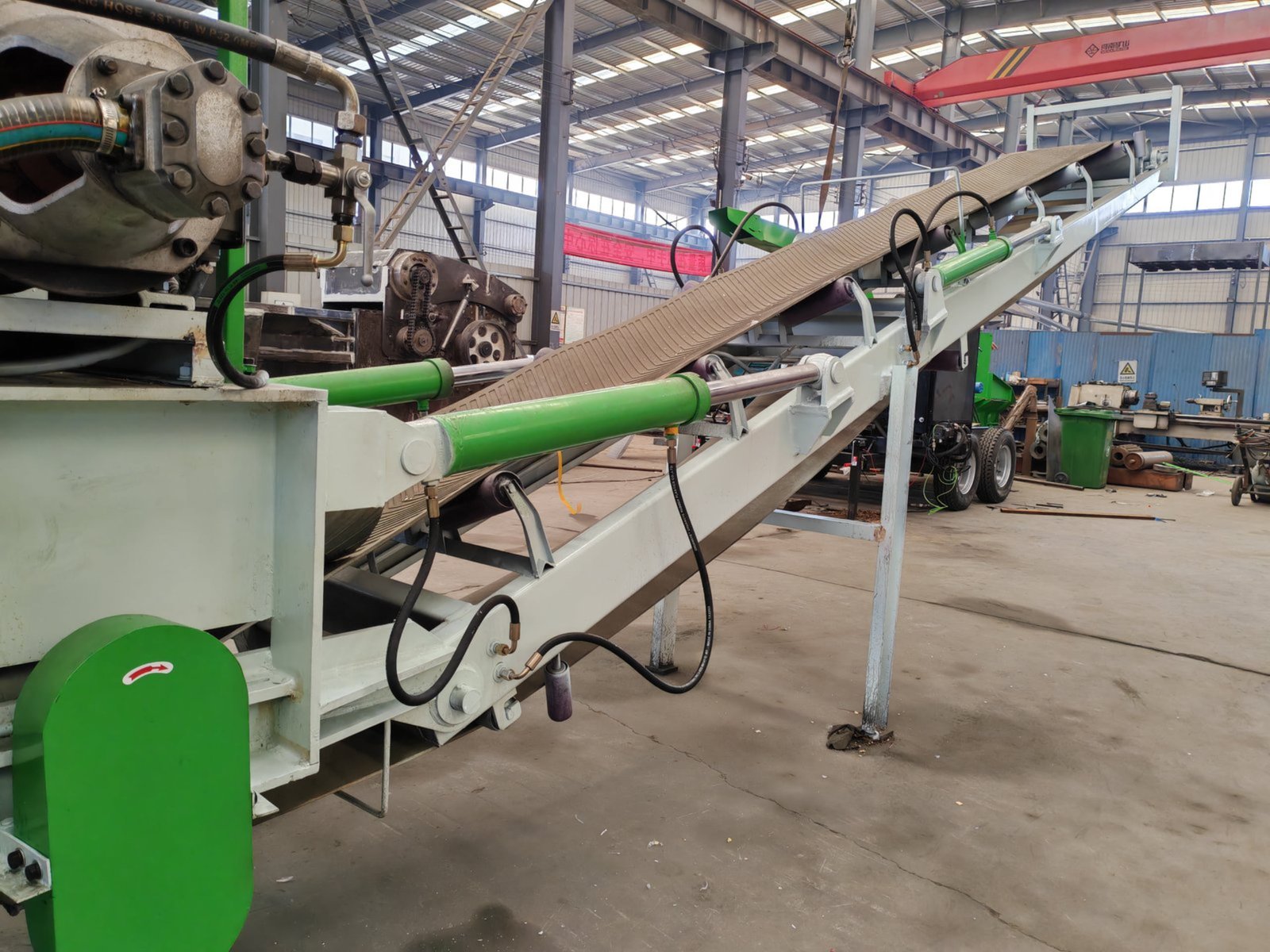

Elevated Discharge for Easy Loading
The raised discharge outlet allows direct loading into trucks or containers, reducing material handling and keeping the worksite organized.

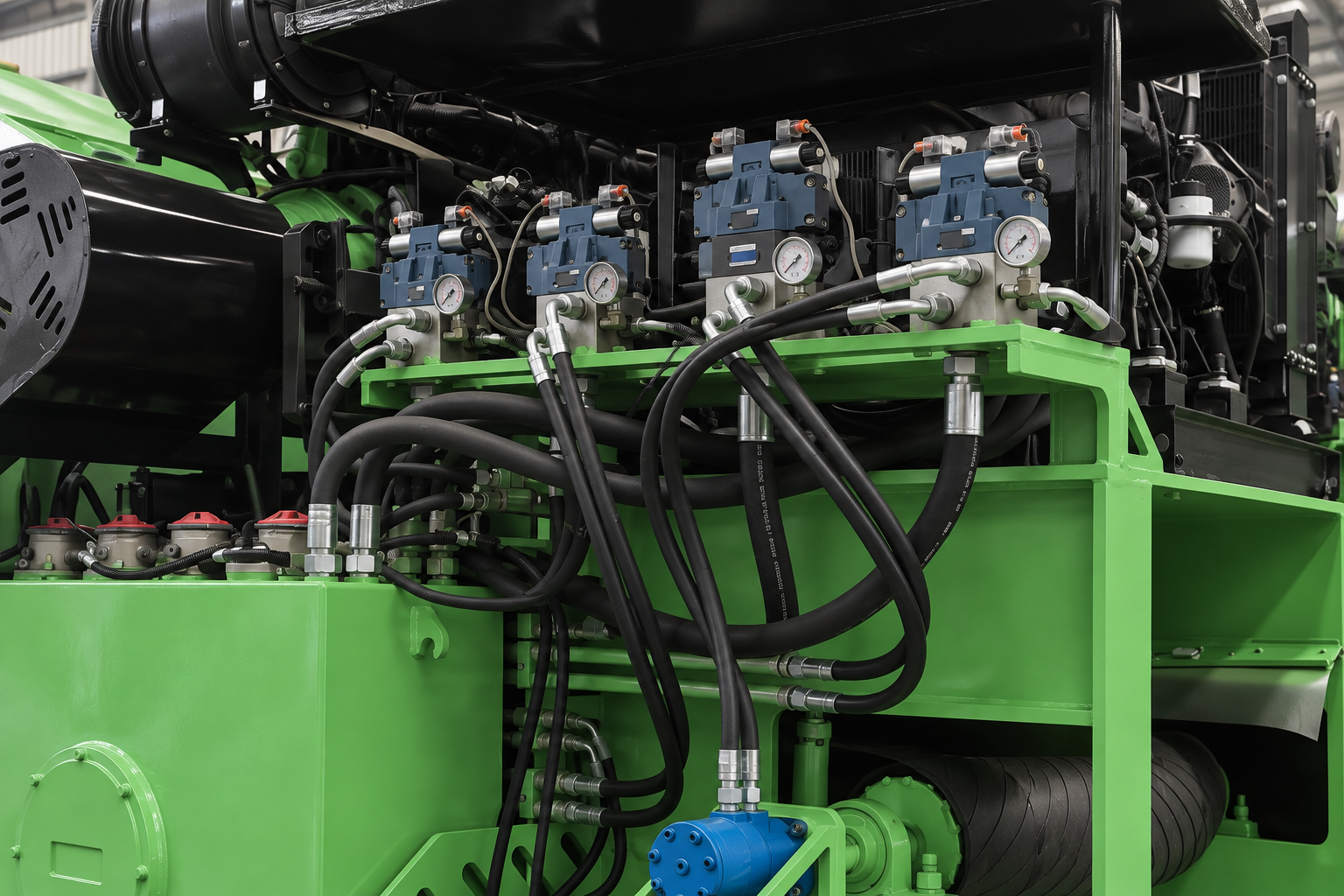

Hydraulic Feed & Service
The upgraded hydraulic system supports controlled feeding and maintenance functions across heavy-duty work.
Multiple Blade And Hammer Options
Choose blades for large logs or hammers for nail-containing wood to improve efficiency and extend equipment life.

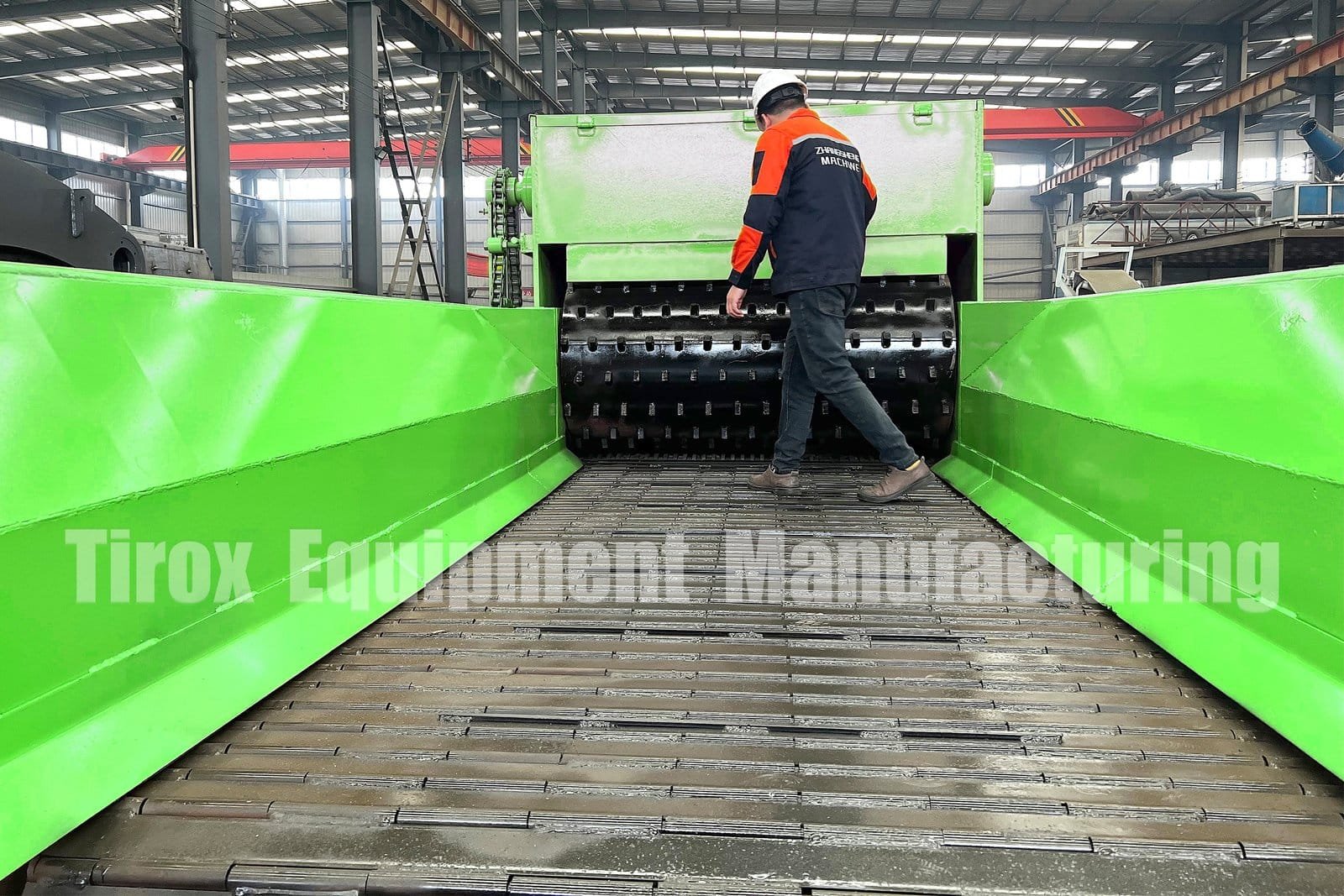

Heavy-Duty Chain-Plate Feeding
The chain-plate conveyor supports bulky logs, pallets and mixed wood waste, providing steady material feeding for continuous heavy-duty processing.
Images show TIROX Heavy Duty Grinder equipment and component details; exact layout, engine and mobility package depend on the selected model and configuration.
/ Gen 2 Lineup
Choose the right scale for your material.
Heavy Duty Grinder · Gen 2

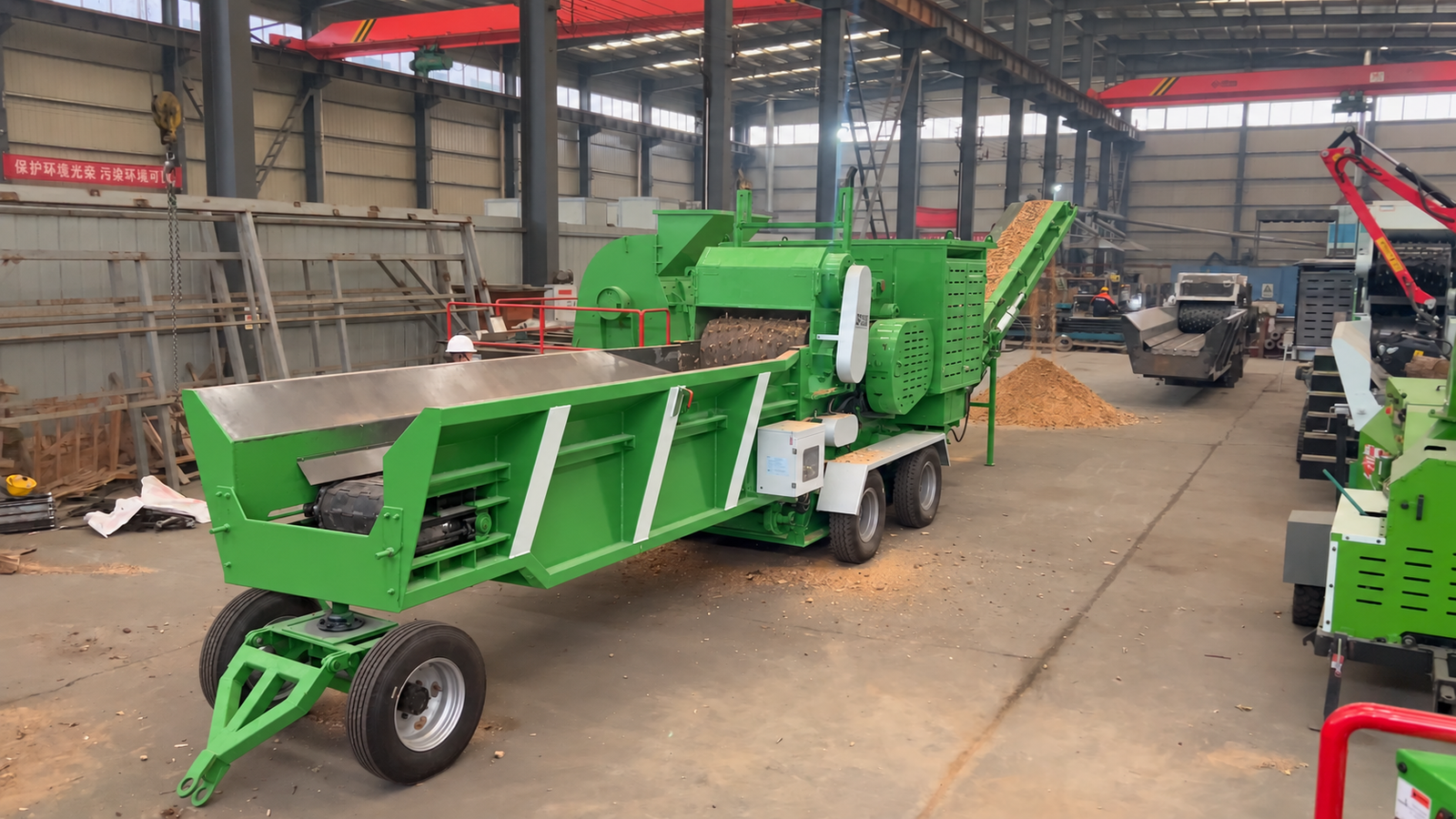

1000
- Engine power
- 350 HP
- Published output
- 10–20 t/h
- Infeed opening
- 1000 × 1000 mm
Heavy Duty Grinder · Gen 2

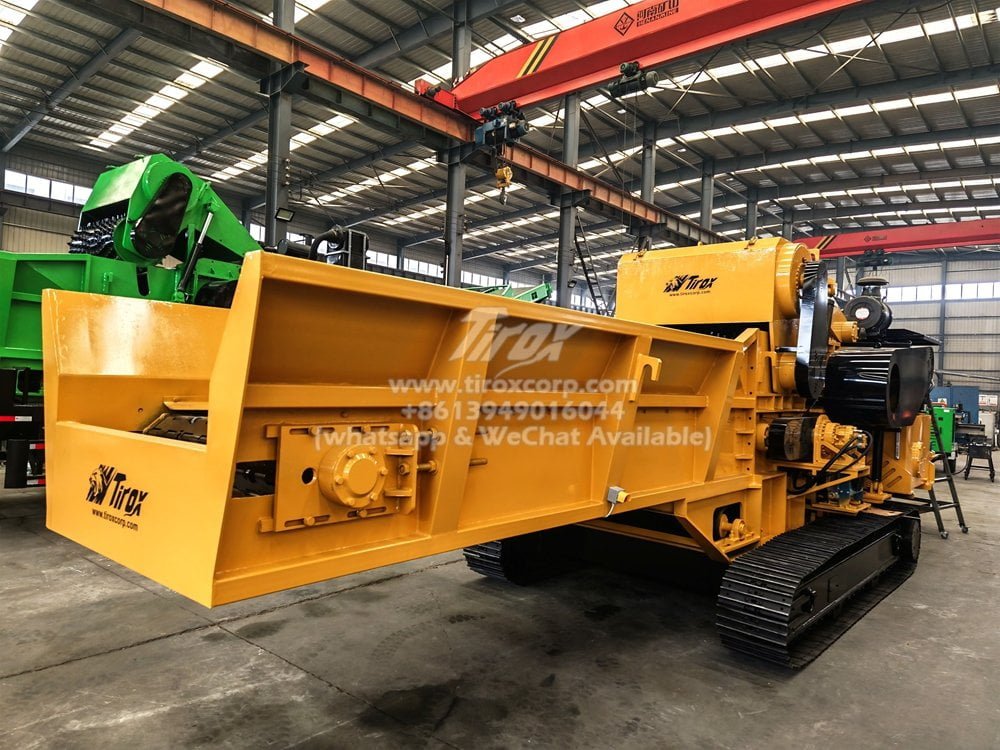

1400
- Engine power
- 482 HP
- Published output
- 15–30 t/h
- Infeed opening
- 1400 × 1000 mm
Heavy Duty Grinder · Gen 2
1600
- Engine power
- 667 HP
- Published output
- 25–40 t/h
- Infeed opening
- 1600 × 1000 mm
Heavy Duty Grinder · Gen 2

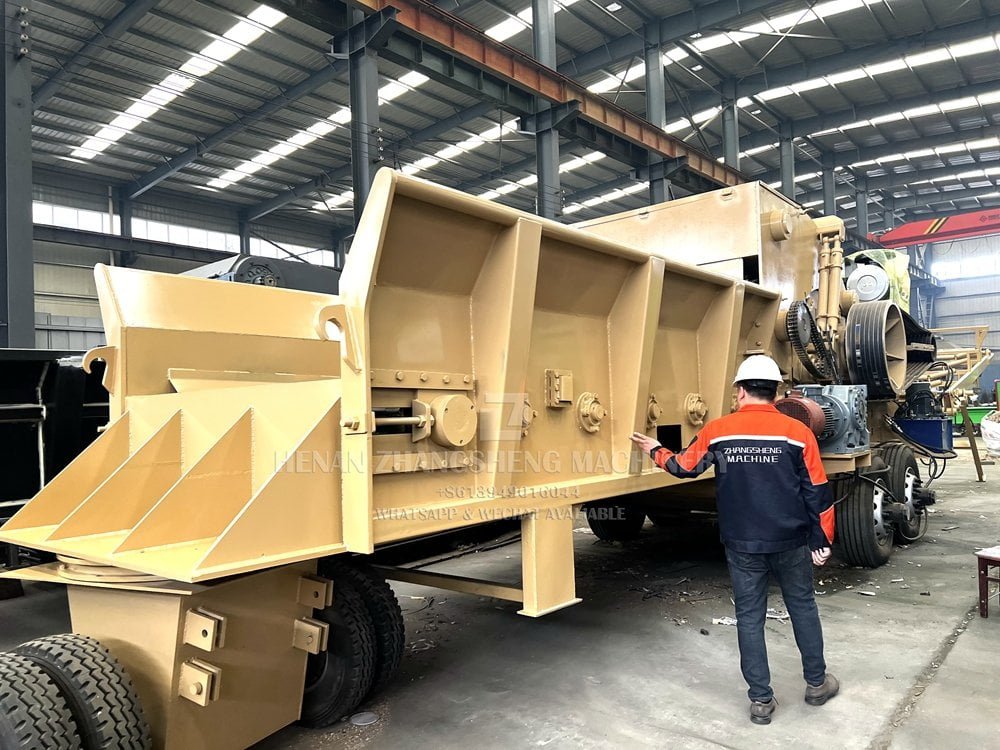

1800
- Engine power
- 861 HP
- Published output
- 30–45 t/h
- Infeed opening
- 1800 × 1000 mm
Published power, opening and capacity figures are reference specifications from the product series page. Actual output and permissible feed depend on the selected build, material, contamination, moisture, rotor, screen and operating conditions; confirm the final proposal.
/ Equipment Gallery
TIROX Gallery.
/ Ownership Support
Support designed around uptime.
TIROX can match the Gen 2 model, hammer-rotor configuration, screen, engine and mobility package to your material and site. The final build sheet should state feed limits, duty cycle and service requirements.
- ✓Pre-shipment testing
- ✓Rotor and screen selection
- ✓Spare-parts planning
- ✓Operating and maintenance guidance
/ FAQ
Frequently asked questions.
Which Gen 2 model should I choose?+
Select 1000, 1400, 1600 or 1800 from the required throughput, infeed dimensions, feedstock and site layout. TIROX should confirm the final build.
Can Gen 2 process nailed pallets and construction timber?+
Yes. Configure a hammer rotor for pallets, old furniture and demolition timber containing common metal fasteners. Material contamination must still be reviewed before operation.
What do the published capacity figures mean?+
The series page lists 10–20 t/h for 1000, 15–30 t/h for 1400, 25–40 t/h for 1600 and 30–45 t/h for 1800. Actual production depends on feedstock, moisture, contamination, screen and operation.
Is Gen 2 suited to sustained production?+
The reinforced platform, PLC-managed feed and automatic lubrication support long-shift production. Confirm the required duty cycle, maintenance plan and feed system for your site.
/ Configure Your Gen 2
Tell us what goes in.
We'll configure what comes next.
Share the feedstock, contamination level, maximum piece dimensions, target output, site layout and destination country so we can match the model, rotor and screen.
